Touch Screen 2000PCS/Min SS304 Capsule Filling Machine

Name: Touch Screen 2000PCSMin SS304 Capsule Filling Machine
Brand: LTPM CHINA
Price: 1 USD

China Touch Screen 2000PCS/Min SS304 Capsule Filling Machine wholesale

Brand Name : LTPM CHINA

Model Number : NJP-2000

Certification : CE

Place of Origin : china

MOQ : 1 Set

Price : Negotiation

Payment Terms : 30% TT as deposit and 70% before shipping

Supply Ability : 25 sets/Month

Delivery Time : In 25 days after receiving the deposit

Packaging Details : Wooden Case

Capacity : 30set/month,2000capsules/min

Item Name : Capsule Filling Machine

Operation : Touch Screen

Service : whole machine life service

Material Consist : Stainless Steel 304 and 316L

Contact Now

The NJP series capsule filling machine is an upgraded version of semi-automatic capsule filling machine. It mainly used for filling powdery and granular materials to empty capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).Our NJP capsule filling machine can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output. It has the advantages of accurate loading, stable operation and no dust.
It meets the GMP requirements.

Touch Screen 2000PCS/Min SS304 Capsule Filling Machine

Technical Parameters

MODEL	2000
Output(pcs./min)	2000
No. of segment bores	18
Applicable Capsule Size	00#-5#
Applicable Filling Object	Powder and granular ( Pellets is available)
Operation System	Touch screen (Button operation is available)
Dosage	Different Dosages are available by changing dosage disk
Power Supply	Customerized
Total Power	7.62KW
Overall Weight	1800Kg
Overall Dimension(mm)	1375×1345×2000(+200)mm

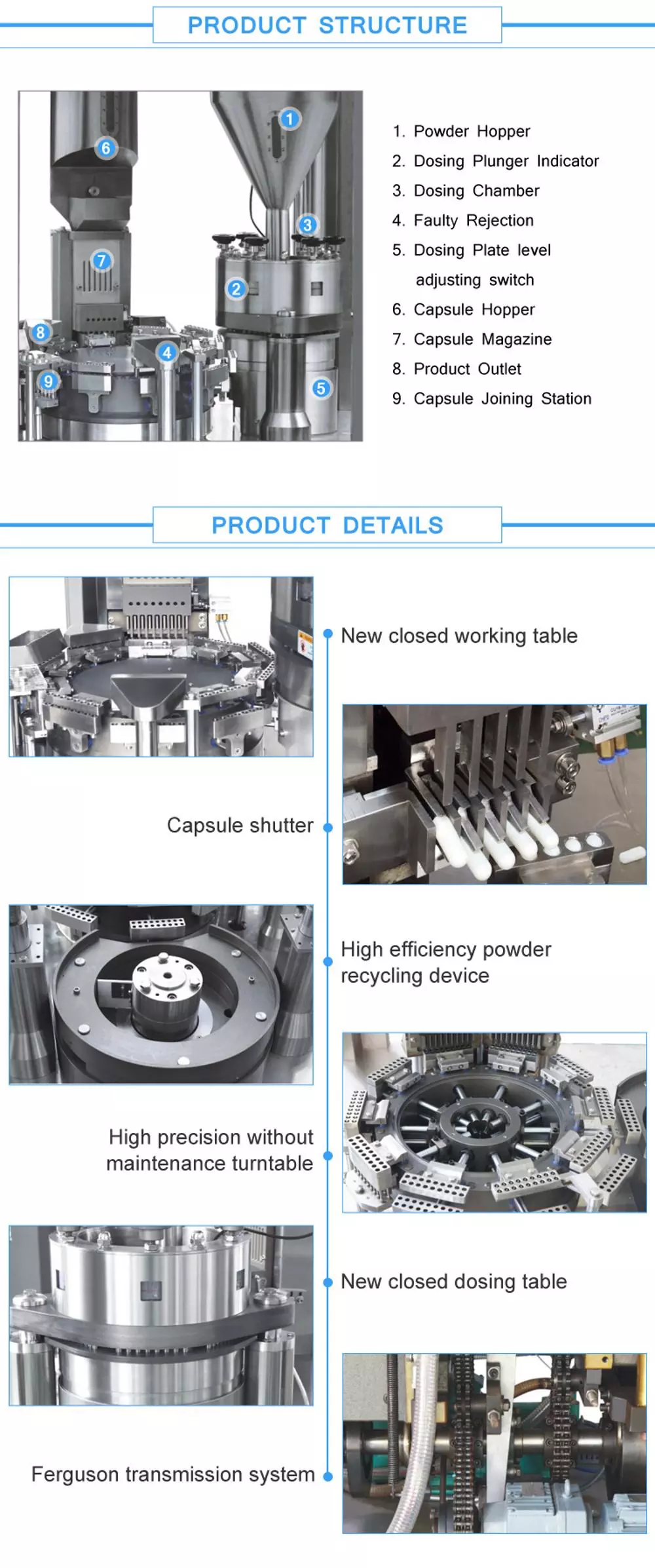

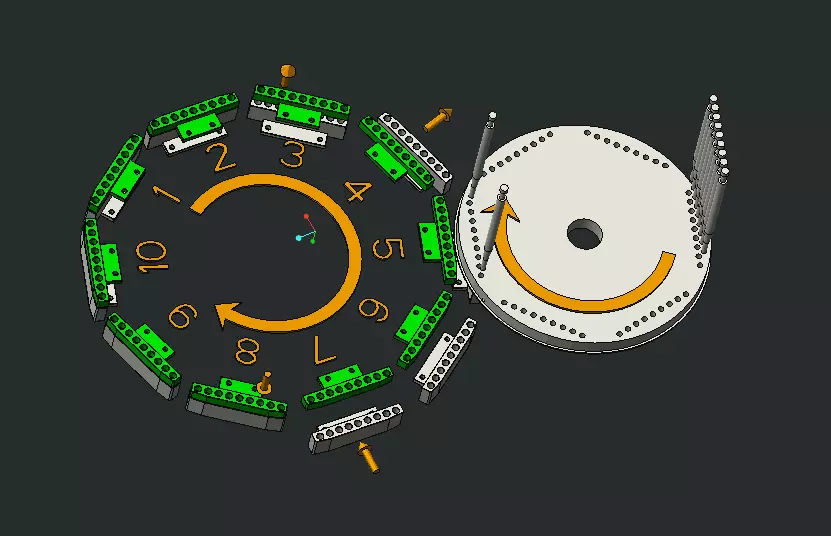

Automatic Capsule Filling Machine is described station by station :

Touch Screen 2000PCS/Min SS304 Capsule Filling Machine

Functional Parameter

3.1 The capsules are fed to the segment in sequence; the cap and body are separated by means of a vacuum suction.

3.2 Transporting

3.3 Cap and body are separated and prepared for filling

3.4 Powder column filling

3.5 Optional pellet and tablet filling

3.6 Eject the faulty capsules

3.7 Transporting

3.8 Joining of capsule body and cap

3.9 Eject finished product

3.10 Clean the segments

Touch Screen 2000PCS/Min SS304 Capsule Filling Machine
