CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine

Name: CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine
Brand: LTPM CHINA
Price: 1 USD

China CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine wholesale

Brand Name : LTPM CHINA

Model Number : RotaTop-Series

Certification : CE, GMP, SGS, BV

Place of Origin : Zhejiang Province,China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, MoneyGram

Supply Ability : 45 sets/month

Delivery Time : 25 days

Packaging Details : Export Standard Wooden Case

Working position : eight-working position

Pouch material : Laminated film PE、PP

Pouch pattern : W:100-210mm L:100-350mm

Filling Scope : 10-5000g（ The screw attachment is to be changed）

Speed : 10-45pouches/min（The speed depends on the product status and flling weight））

Voltage : 380V 3phase 50HZ/60HZ

Contact Now

1kg 2kg 3kg CE Automatic Vertical Big Bag Fertilizer Packing Machine

Working Process:
1. Giving bag:Power on, suction tip adsorbs the bag, the arm folder clamps the dial folder on the first working position.
 2.Coding: The machine run to the second working position, it codes the bag.
 3. Opening bag:The machine run to the third working position, it opens the bag.
 4.Filling: The machine runs to the fourth working position, it fills the bag.
 5.Sealing: The machine runs to the fifth working position, it checks if the bag is filled with material, then it seals the bag.
 6.Forming & output packages: The machine runs to the sixth working position, it cools the bag mouth and forms& output packages. The above process carried out simultaneously by cycle

Advantage:
 Machinery passed Certifications, by ISO, CE,SGS, ROHS, EU Low Voltage, EC Machinery.

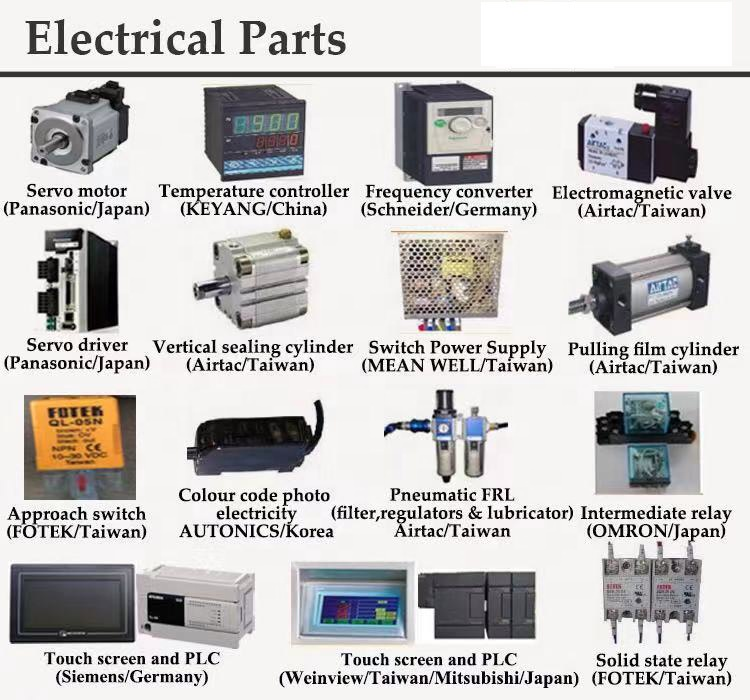

 High quality configurations. Mitsubishi / Siemens PLC, Panasonic/ Siemens/ Delta servo motor driver, Mitsubishi/ Siemens/ Weinview touch screen.
 Pneumatic system, double belt pulling film, very stalbe.
 Professional vertical packing machine producer and factory supplier, over 10 years.
 Great workshop team and after-sales services.

Combined Parts:
Automatic Z-type bucket elevator
 Linear weigher
 Vertical Packing Machine
 Platform
 Finished product conveyor

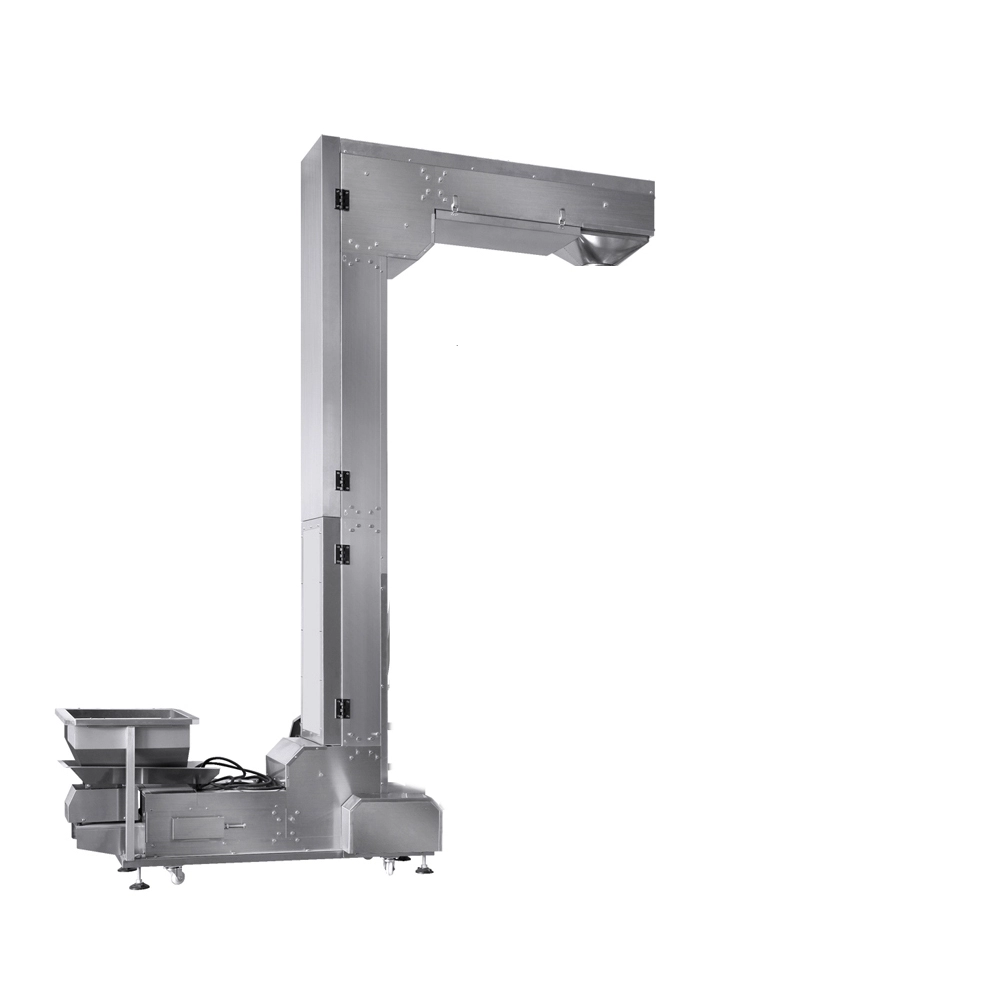

Automatic Z-type bucket elevator:


Technical Parameters:

Working position	eight-working position
Pouch material	Laminated film PE,PP
Pouch pattern	stand-up&zipper pouch
Pouch size	W:100-210mm L:100-350mm
Filling Scope	10-5000g( The screw attachment is to be changed)
Weight Accuracy	Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5%
Speed	10-45pouches/min(The speed depends on the product status and flling weight))
Voltage	380V 3phase 50HZ/60HZ
Total power	8.5KW
Compress air	0.6m3/min(supply by user)
Size	190015701700mm

CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine

Product Tags:

1kg fertilizer packing machine

2kg fertilizer packing machine

3kg fertilizer packaging machine

CE Vertical Big Bag 1kg 2kg 3kg Fertilizer Packing Machine Images
