Concentration Herb Extraction Equipment / Molecular Distillation Apparatus

Name: Concentration Herb Extraction Equipment Molecular Distillation Apparatus
Brand: LTPM China
Price: 1 USD

China Concentration Herb Extraction Equipment / Molecular Distillation Apparatus wholesale

Brand Name : LTPM China

Model Number : LTN-Series

Certification : CE

Place of Origin : China

MOQ : 1set

Price : Negotiation

Payment Terms : 30% TT as deposit and 70% before shipping

Supply Ability : 25 sets/Month

Delivery Time : In 30 days after receiving the deposit

Packaging Details : Wooden Case

Power of Vacuum Pump : 12kw

Concentrate density (%) : 1.2-1.35

The volume of extracting : 6000L

Raw Material Input Capacity (kg) : 600-800

Capacity of Concentrating Evaporator : 1500kg/hour

The time of extraction (h) : 0.6-4h

Contact Now

Sanitary Herb Extraction Equipment Plant Extraction Concentration Pilot Machine

Application :

This equipment is suitable for extracting and concentrating the effective component from Chinese herbals and other botanical.

Feature:

1. This equipment has excellent manufacture,complete collocation,simple operation.It is consist of extracting tank,concentrated pot,storage tank for liquid material,condenser,oil-water separator, filter, delivery pump,vacuum pump and so on. We have steam heating and electric heating,the user can operate it only to engage the steam or electricity.
2.This equipment collect extraction,vacuum concentration,solvent recovery together and it can realize the operation of normal temperature extraction,low temperature extraction,hot circumfluence,low temperature circumfluence,low temperature concentration and essential oil collection etc.
3.The concentration proportion can get above to1.4 and the temperature can be controlled between 48-100°C freely,so it is espically suitable for some high heat-sensitivity material and some material is sensitive to high temperature.
4.This equipment can configure with PLC control system according to user’s demand and control the parameter during the processing to enhance the production efficiency and quality.

Main Technical Data:

Manufacturer	China LTPM Group Co., LTD
PN	5L vacuum emulsifying mixer
Capacity	Design volume: 6L, working capacity:5 L
Kettle Cover	Liquid(particle)inlet, sunk material inlet, air inlet with filter, inspect light and sight glass, vacuum port, pressure meter(1 to -0.1 bar), pressure clamp
Mixing pot	Material		Inner layer: SUS316L thickness: 3mm
			Middle layer: SUS304 thickness: 2mm
			Outside layer: SUS304 thickness:2mm
	configuration		Bottom material exhaust, size: 1.5”
			Temp. sensor (0-199℃)
			Electrical heating: 2kw, cooling water inlet
Stirring system	Homogenizer	1.Material: SUS316L; standard homogenizer 2. Power: 1.1 kw/380/50Hz; RPM: 0--2800R/Min
	Stirring scrap and middle stirring	Material: SUS316L,Scrap material: PTFE
		1. Stirring scrap and middle stirring use the same motor 2,Power:0.75 kw/380V/50Hz;RPM:0~86r/min(Frequency control) 3. Stirring scrap and middle stirring rotating the opposite direction
		Safety: 1. During stirring, the cover can not open, 2. Cover lift can not stirring.
Vacuum system	1. Vacuum pump: water recycle, power 0.37kw/380V/50Hz 2. With pressure sensor (during vacuum condition, hydraulic can not open)
Heating method	Jacket electrical heating
Exhaust method	Electric doom and bottom discharge or positive pressure discharge material
Pressure	Pressure in the pot during working: -0.090 Mpa; Jacket working pressure:0.2 Mpa
Control box	SUS304 , 1.2mm thickness
Dimension	1400mm×600mm×1900~2400 mm
	Shelf is SS, platform with raised platform and SS guardrail
Spare parts	One year spare parts and tools
Guarantee	One year
Using life	More than 15 years

Oil pot	Design volume	3.35L
	Working capacity	2.7L
	Stirring power	0.025kw
	Stirring speed	1400 RPM
	Heating power	1 Kw
Water pot	Design volume	3.35L
	Working capacity	2.7L
	Stirring power	0.025kw
	Stirring speed	1400 RPM
	Heating power	1 Kw

Concentration Herb Extraction Equipment / Molecular Distillation Apparatus

Product Tags:

herbal extraction equipment

liquid extraction equipment

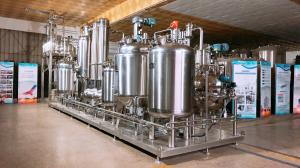

Concentration Herb Extraction Equipment / Molecular Distillation Apparatus Images
